PROJECT DESCRIPTIONS

LED Propeller Display : This project is a special kind of circular LED display. With the help some mechanical assembly, LED count, hardware requirement, and hence overall cost is cut to very affordable price. Also, maintenance and repairing of the display is so easy, that anyone having a little electronics knowledge, can take care of this. All the synchronizing can be implemented through software. First of its kind, made using the 20-pin 8051 series microcontroller, this project use the principle of Space Multiplexing. This propeller display is mechanically scanned and displays the characters in digital format. Made from scrap it can be used anywhere and everywhere and the most amazing fact about this display is it’s crystal clear display. This display consists of just 8 bright LEDs which are rotated to show the display. For building this project, requirement is just a small 20 pin microcontroller, a position encoder, and LEDs. This display can show the messages, which will require a whopping 525 LEDs. So hardware and cost minimization is achieved.

PROJECT DETAILS

  1. Technology :LED Display
  2. Software used :AVR, OrCAD, Proteus
  3. Microcontroller :8051 / Atmega 8/16
  4. Category :Electrical / Electronics / Embedded / Mechanical
  5. Project Report :Available
  6. Coding :Available

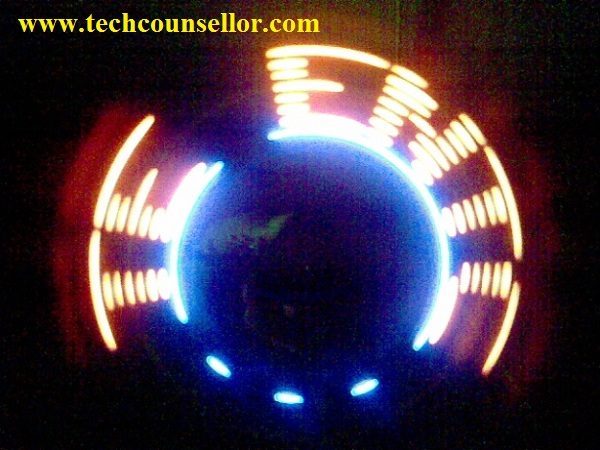

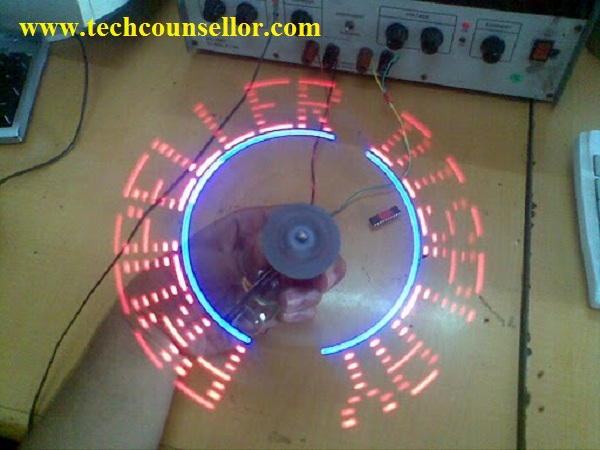

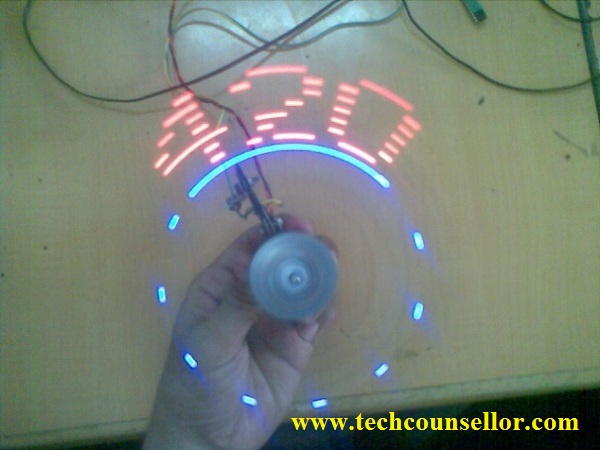

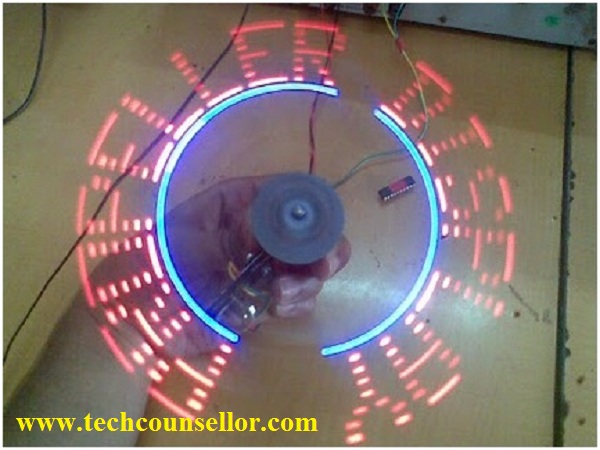

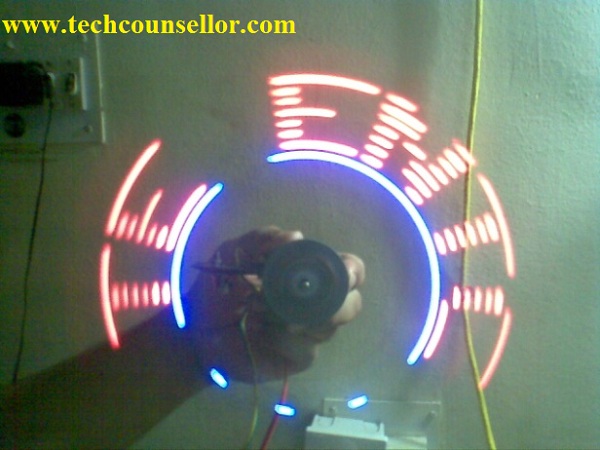

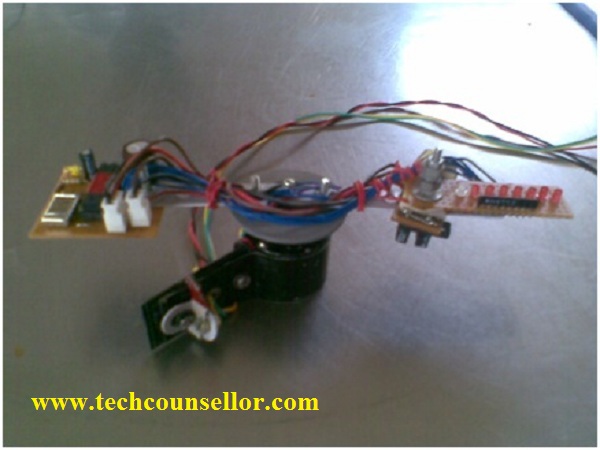

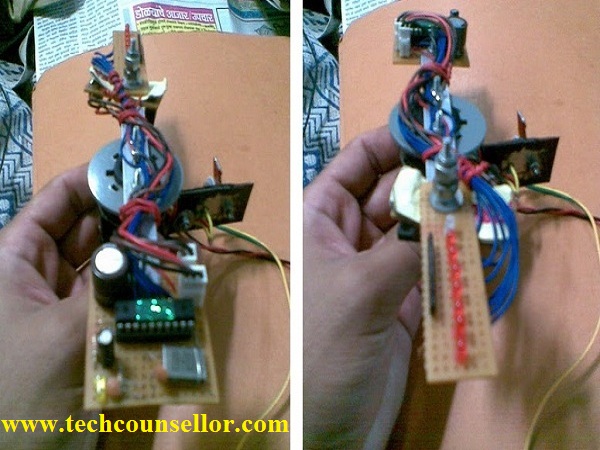

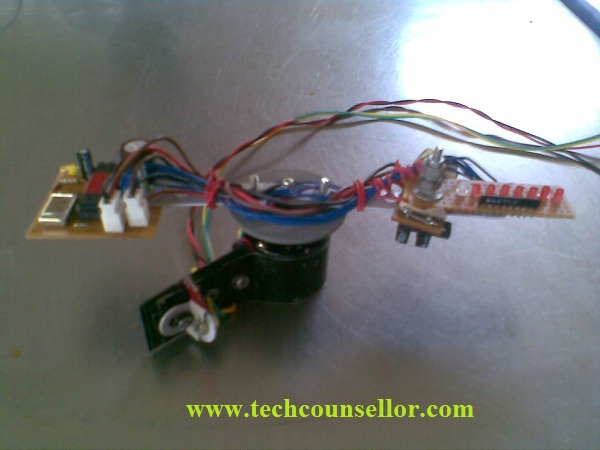

Project Images
